Wall Mount

5 bike solution

Rack trolley new.jpg
5 bike wall rack.jpg
Rack trolley new.jpg
5 bike wallrack 3.jpg
Rack trolley new.jpg
5 bike wallrack 2.jpg

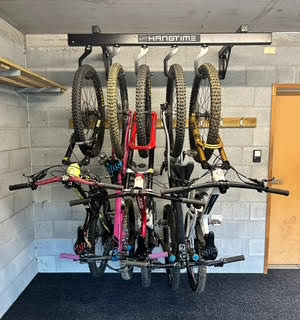

Our Hangtime Wall Mount bike racks are available in a 5 bike option.

They have all the benefits and specifications of the Free Standing  - “less the posts!!”

Achieve minimal and clean look with solid mounting off the wall.

Start with a standard 5 bike(1.5meters) and add on as your bike collection, business or family grows – endless possibilities



Note:   More or less Hooks can be supplied if requested and price adjusted according

​

  • Manufactured in New Zealand

  • Hang, spin and slide – safe and efficient

  • Suits all bikes – Mtb, E-bikes and downhill, road, dirt jumpers, BMX and all kids bikes

  • Hook weight limit 30kg  - all bikes including  E-bike capable

  • Big hooks for big wheels from 4” Fat bikes to skinny road bikes or race BMX bikes

  • Suitable with all aluminium and carbon wheels

  • Endless add on possibilities as your bike collection, business or family grows.

  • Galvanized brackets and beams  then powder coated for durability and a great looking finish.

​

Pricing:

5-bike $1,200

​

All pricing includes GST.

Product Information

Please Note: Hangtime wall mount systems must be fitted to a solid wall, fastened to studs or solid block/precast concrete wall.  It is the purchases responsibility to ensure



Specifications:

​

  • Each HANGTIME Wall Mount can support up to 120kgs

  • Tested fasteners supplied with your Wall Mount system to suit mounting application – timber / precast / concrete block  - Please advise on ordering

  • Multiple mounting points in hook beam – every 100mm to align with standard  Building Code stud positions 450mm or 600mm centres

  • Full pre galvanised frame then powder coated for durability and a good looking finish.

  • 5 hooks per 1500mm rail

  • Hooks have a soft edge protection to protect your rims – suitable with all aluminium and carbon wheels

  • Pre-loaded hooks – slide once weight is on 15kgs +/-

  • Hooks can spin 360 degrees.

  • Size: 5 bike – Length 1500mm

  • No restrictions on length – additional Wall Mount kits can be purchased – (Only sold as complete kits – 1 x Beam, 5 hooks, 2 brackets, beam joiner supplied with 2nd kit )

  • Recommended install height  2.100mm – 2.400mm (top of Wall Bracket)

​

​
